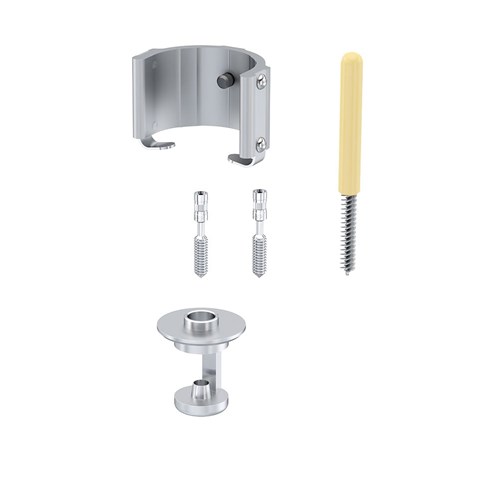

Spiral adapter, SAS-1

Spiral adapter to measure the viscosity of very sticky and other viscous samples. Additionally, it is possible to analyse the fluid behavior of different shear rates.
Technical Specifications
Supplier IKA
Spindle geometry Spiral
Connection Thread M2.5 LH
Diameter 6.35 mm
Spindle length 41.2 mm
Mounting Bracket yes
Working temperature max. 300 °C
Viscosity Accuracy (FSR) 2 %
Viscosity Repeatibility (FSR) 0.2 %
Min. FSR match ROTAVISC lo-vi 984 mPa.s
Max. FSR match ROTAVISC lo-vi 984000 mPa.s
Min. FSR match ROTAVISC me-vi 10500 mPa.s
Max. FSR match ROTAVISC me-vi 1100000 mPa.s
Min. FSR match ROTAVISC hi-vi I 21000 mPa.s
Max. FSR match ROTAVISC hi-vi I 21000000 mPa.s
Min. FSR match ROTAVISC hi-vi II 84000 mPa.s
Max. FSR match ROTAVISC hi-vi II 84000000 mPa.s
Material in contact with medium stainless steel 1.4404
Dimensions (W x H x D) 160 x 82 x 270 mm
Weight 0.527 kg
