Spindle for stiff, poor flowing samples, VOL-SP-2.1-S

Product Code: IKA0020118239

Increase value Decrease value
  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

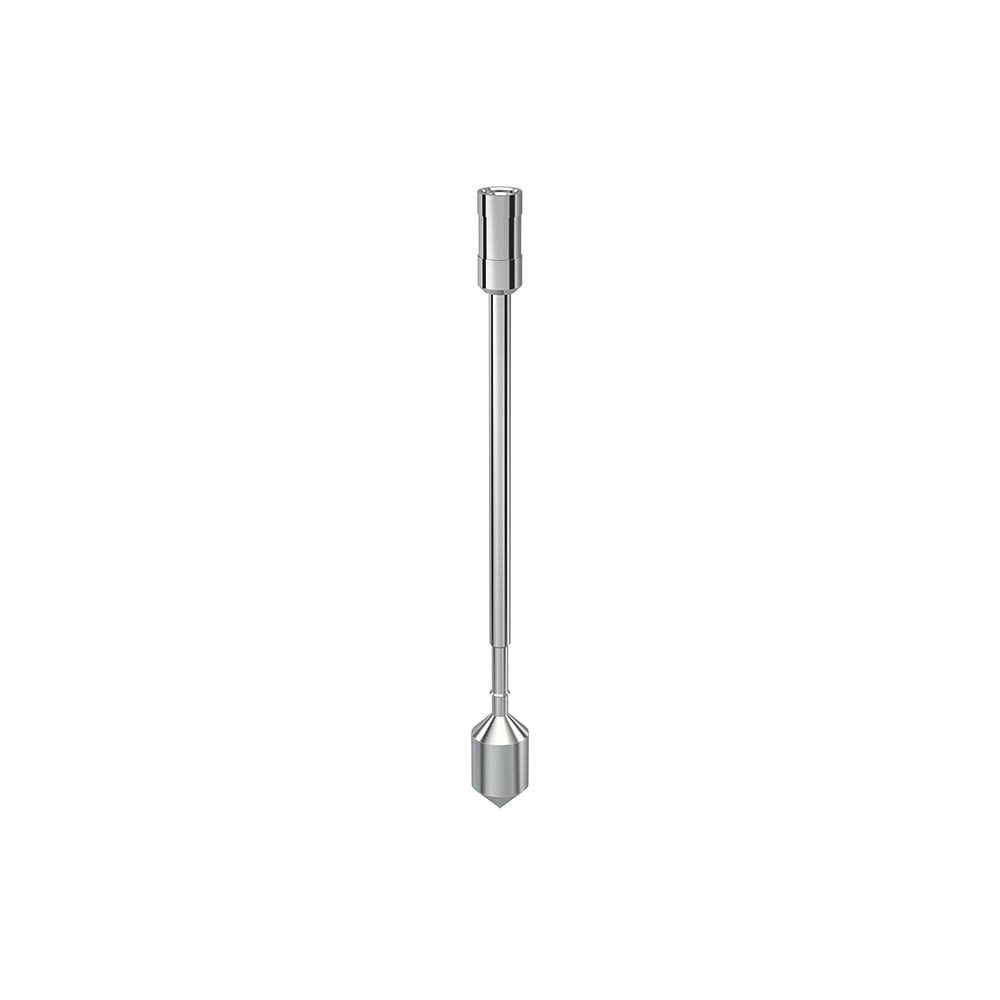

Spindle for stiff, poor flowing samples, VOL-SP-2.1-S

Directly screwed onto the viscometer instead of the classic hook connection. The use of this spindle in the VOL-C-RTD-2.1 chamber prevents the eccentric running behavior of the VOL-SP-2.1 spindle with hook suspension. Recommended especially for stiff, poorly flowing samples such as pastes, asphalt, syrups, resins.
Technical Specifications
Supplier IKA
Spindle geometry Cylinder
Connection Thread M2.5 LH
Hook connector yes
Diameter 8.7 mm
Immersion depth 19.5 mm
Spindle length 95.8 mm
Sample volume 2.1 ml
Flow Jacket yes
Mounting Bracket yes
Sample container: Specified chamber
Working temperature max. 100 °C
Viscosity Accuracy (FSR) 2 %
Viscosity Repeatibility (FSR) 0.2 %
Min. FSR match ROTAVISC lo-vi 585.8 mPa.s
Max. FSR match ROTAVISC lo-vi 117163 mPa.s
Min. FSR match ROTAVISC me-vi 6250 mPa.s
Max. FSR match ROTAVISC me-vi 1250000 mPa.s
Min. FSR match ROTAVISC hi-vi I 12500 mPa.s
Max. FSR match ROTAVISC hi-vi I 2500000 mPa.s
Min. FSR match ROTAVISC hi-vi II 50000 mPa.s
Max. FSR match ROTAVISC hi-vi II 10000000 mPa.s
Material in contact with medium stainless steel 1.4404
Dimensions (W x H x D) 11 x 98 x 11 mm
Weight 0.013 kg
