Open DIN spindle set, O-DINS-1

Product Code: IKA0025000326

Increase value Decrease value
  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

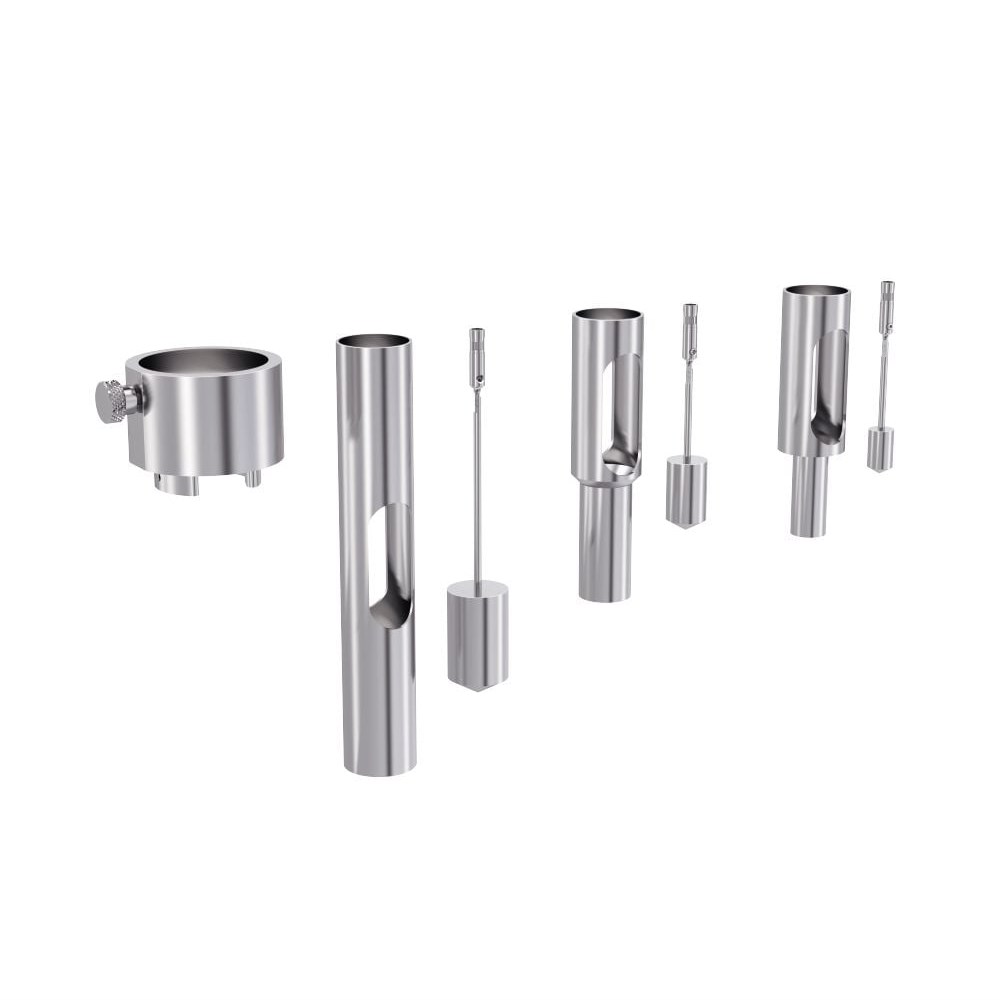

Open DIN spindle set, O-DINS-1

The open DIN spindle set (O-DINS-1) measures viscosities according to DIN 53019 and can be used with customer-specific vessels. The set includes a single-wall-open-jacket to quickly dive into the sample liquid as well as a coaxial cylinder system for the analysis of the sample at a specific shear rate and shear stress is included. The maximum measurable viscosity is 50 000 mPas.
Technical Specifications
Supplier IKA
Spindle geometry Cylinder
Connection Thread M2.5 LH
Flow Jacket yes
Mounting Bracket yes
Sample container: Specified chamber
Working temperature max. 100 °C
Viscosity Accuracy (FSR) 2 %
Viscosity Repeatibility (FSR) 0.2 %
Min. FSR match ROTAVISC lo-vi 6 mPa.s
Max. FSR match ROTAVISC lo-vi 50000 mPa.s
Min. FSR match ROTAVISC me-vi 61 mPa.s
Max. FSR match ROTAVISC me-vi 50000 mPa.s
Min. FSR match ROTAVISC hi-vi I 122 mPa.s
Max. FSR match ROTAVISC hi-vi I 50000 mPa.s
Min. FSR match ROTAVISC hi-vi II 488 mPa.s
Max. FSR match ROTAVISC hi-vi II 50000 mPa.s
Material in contact with medium stainless steel 1.4404
Dimensions (W x H x D) 390 x 102 x 310 mm
Weight 1.919 kg
