Spindles

Extremely low viscocity adapter spindle set, ELVAS-1

Product Code: IKA0025000390

  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

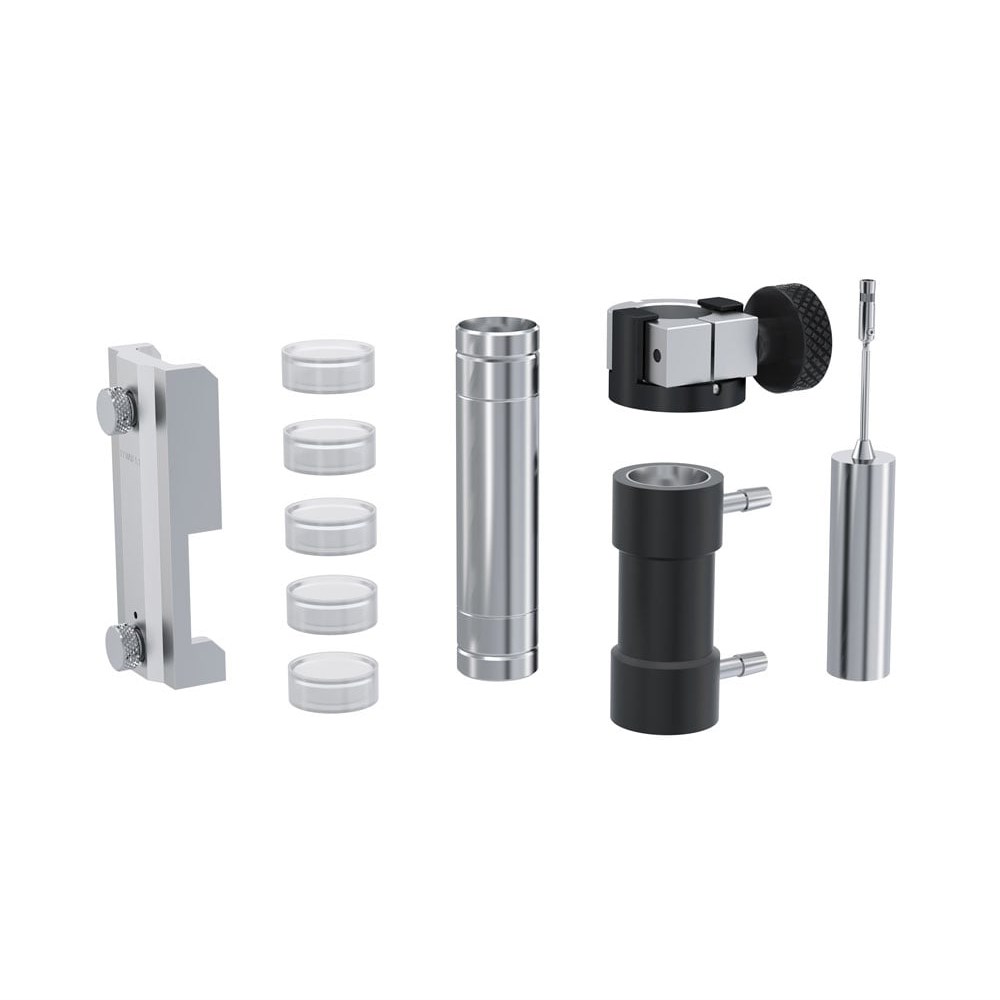

Extremely low viscocity adapter spindle set, ELVAS-1

The extremely low viscosity adapter spindle set ELVAS-1 includes a double jacket to quickly heat up or cool down the sample as well as a coaxial cylinder system for the analysis of the sample at a specific shear rate and shear stress. This 16 ml spindle is commonly used with the ROTAVISC lo-vi and allows measurements from 1 mPas (water temperature at 20 °C). The spindle without the water jacket can also be used in customer-specific vessels. The maximum measurable viscosity is 2000 mPas.
Technical Specifications
Supplier IKA
Spindle geometry Cylinder
Connection Thread M2.5 LH
Diameter 25.15 mm
Spindle length 161 mm
Sample volume 16 ml
Flow Jacket yes
Mounting Bracket yes
Sample container: Specified chamber
Working temperature max. 100 °C
Viscosity Accuracy (FSR) 2 %
Viscosity Repeatibility (FSR) 0.2 %
Min. FSR match ROTAVISC lo-vi 1 mPa.s
Max. FSR match ROTAVISC lo-vi 2000 mPa.s
Min. FSR match ROTAVISC me-vi 3.2 mPa.s
Max. FSR match ROTAVISC me-vi 2000 mPa.s
Min. FSR match ROTAVISC hi-vi I 6.4 mPa.s
Max. FSR match ROTAVISC hi-vi I 2000 mPa.s
Min. FSR match ROTAVISC hi-vi II 25.6 mPa.s
Max. FSR match ROTAVISC hi-vi II 2000 mPa.s
Material in contact with medium stainless steel 1.4404, LDPE
Dimensions (W x H x D) 300 x 110 x 275 mm
Weight 1.753 kg
