Spindles

Extended viscocity range spindle, VOL-SP-7.1 (suitable for 7.1ml)

Product Code: IKA0025006849

  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

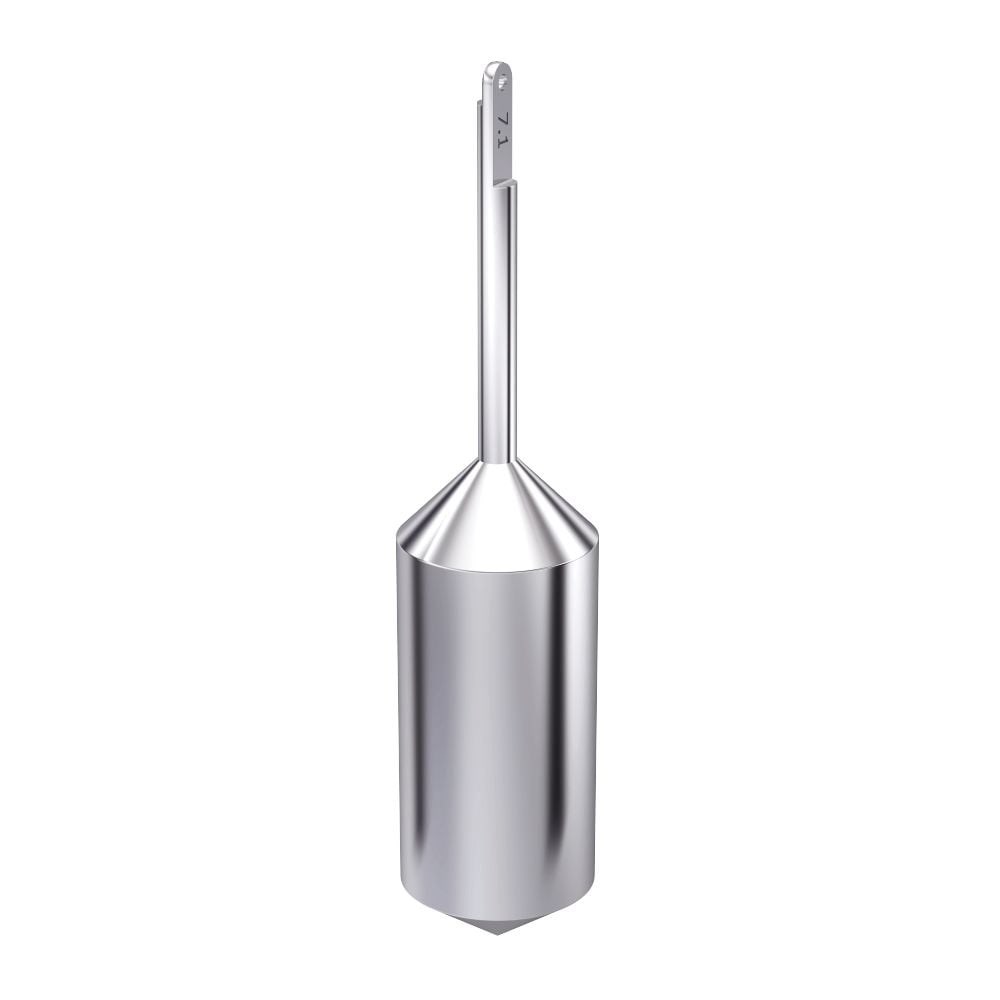

Extended viscocity range spindle, VOL-SP-7.1 (suitable for 7.1ml)

VOL-SP-7.1 is an optional spindle for an extended viscosity range. It is especially suitable for sample volumes of 7.1 ml.
Technical Specifications
Supplier IKA
Spindle geometry Cylinder
Connection Thread M2.5 LH
Hook connector yes
Diameter 16.8 mm
Immersion depth 44.1 mm
Spindle length 76.7 mm
Sample volume 7.1 ml
Flow Jacket yes
Mounting Bracket yes
Sample container: Specified chamber
Working temperature max. 100 °C
Viscosity Accuracy (FSR) 2 %
Viscosity Repeatibility (FSR) 0.2 %
Min. FSR match ROTAVISC lo-vi 23.4 mPa.s
Max. FSR match ROTAVISC lo-vi 4687 mPa.s
Min. FSR match ROTAVISC me-vi 250 mPa.s
Max. FSR match ROTAVISC me-vi 50000 mPa.s
Min. FSR match ROTAVISC hi-vi I 500 mPa.s
Max. FSR match ROTAVISC hi-vi I 100000 mPa.s
Min. FSR match ROTAVISC hi-vi II 2000 mPa.s
Max. FSR match ROTAVISC hi-vi II 400000 mPa.s
Material in contact with medium stainless steel 1.4404
Dimensions (W x H x D) 19 x 79 x 19 mm
Weight 0.066 kg
