Extended viscocity range spindle, VOL-SP-16.1 (suitable for 16.1ml)

Product Code: IKA0025006848

  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

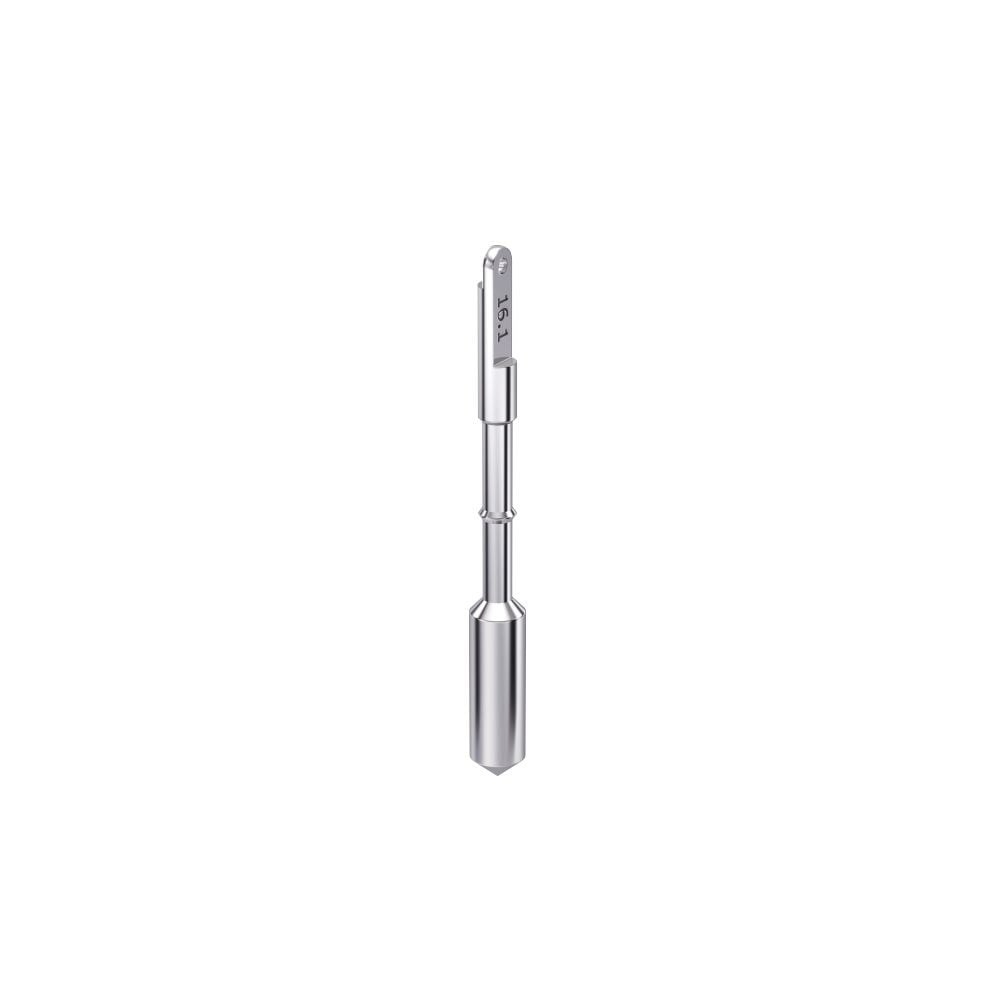

Extended viscocity range spindle, VOL-SP-16.1 (suitable for 16.1ml)

VOL-SP-16.1 is an optional spindle for an extended viscosity range. It is especially suitable for sample volumes of 16.1 ml.
Technical Specifications
Supplier IKA
Spindle geometry Cylinder
Connection Thread M2.5 LH
Hook connector yes
Diameter 4.8 mm
Immersion depth 23.9 mm
Spindle length 46.6 mm
Sample volume 16.1 ml
Flow Jacket yes
Mounting Bracket yes
Sample container: Specified chamber
Working temperature max. 100 °C
Viscosity Accuracy (FSR) 2 %
Viscosity Repeatibility (FSR) 0.2 %
Min. FSR match ROTAVISC lo-vi 2399.5 mPa.s
Max. FSR match ROTAVISC lo-vi 479898 mPa.s
Min. FSR match ROTAVISC me-vi 25600 mPa.s
Max. FSR match ROTAVISC me-vi 5120000 mPa.s
Min. FSR match ROTAVISC hi-vi I 51200 mPa.s
Max. FSR match ROTAVISC hi-vi I 10240000 mPa.s
Min. FSR match ROTAVISC hi-vi II 204800 mPa.s
Max. FSR match ROTAVISC hi-vi II 40960000 mPa.s
Material in contact with medium stainless steel 1.4404
Dimensions (W x H x D) 7 x 49 x 7 mm
Weight 0.003 kg
