Spindles

Extended viscocity range spindle, VOL-SP-13.5 (suitable for 13.5ml)

Product Code: IKA0025006852

  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

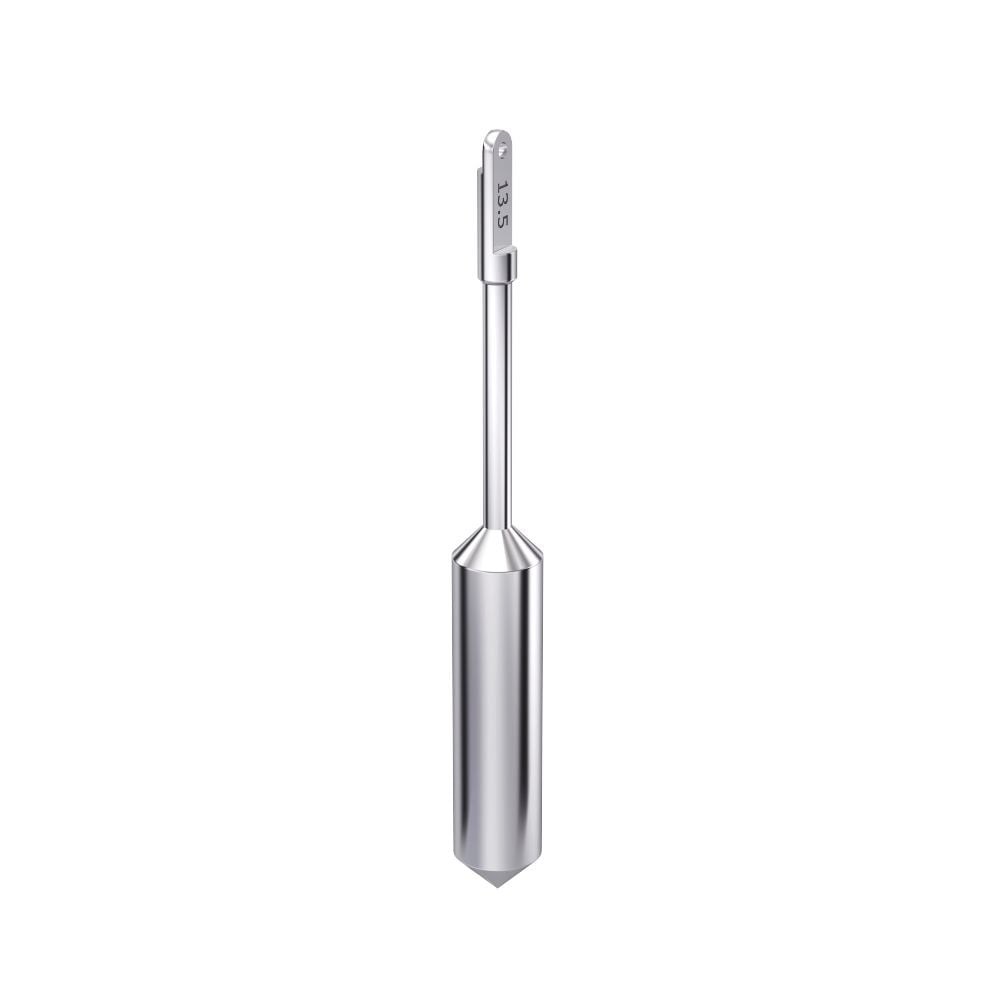

Extended viscocity range spindle, VOL-SP-13.5 (suitable for 13.5ml)

VOL-SP-13.5 is an optional spindle for an extended viscosity range. It is especially suitable for sample volumes of 13.5 ml.
Technical Specifications
Supplier IKA
Spindle geometry Cylinder
Connection Thread M2.5 LH
Hook connector yes
Diameter 7.6 mm
Immersion depth 33.6 mm
Spindle length 66.7 mm
Sample volume 13.5 ml
Flow Jacket yes
Mounting Bracket yes
Sample container: Specified chamber
Working temperature max. 100 °C
Viscosity Accuracy (FSR) 2 %
Viscosity Repeatibility (FSR) 0.2 %
Min. FSR match ROTAVISC lo-vi 468.7 mPa.s
Max. FSR match ROTAVISC lo-vi 93730 mPa.s
Min. FSR match ROTAVISC me-vi 5000 mPa.s
Max. FSR match ROTAVISC me-vi 1000000 mPa.s
Min. FSR match ROTAVISC hi-vi I 10000 mPa.s
Max. FSR match ROTAVISC hi-vi I 2000000 mPa.s
Min. FSR match ROTAVISC hi-vi II 40000 mPa.s
Max. FSR match ROTAVISC hi-vi II 8000000 mPa.s
Material in contact with medium stainless steel 1.4404
Dimensions (W x H x D) 10 x 69 x 10 mm
Weight 0.012 kg
