Overview

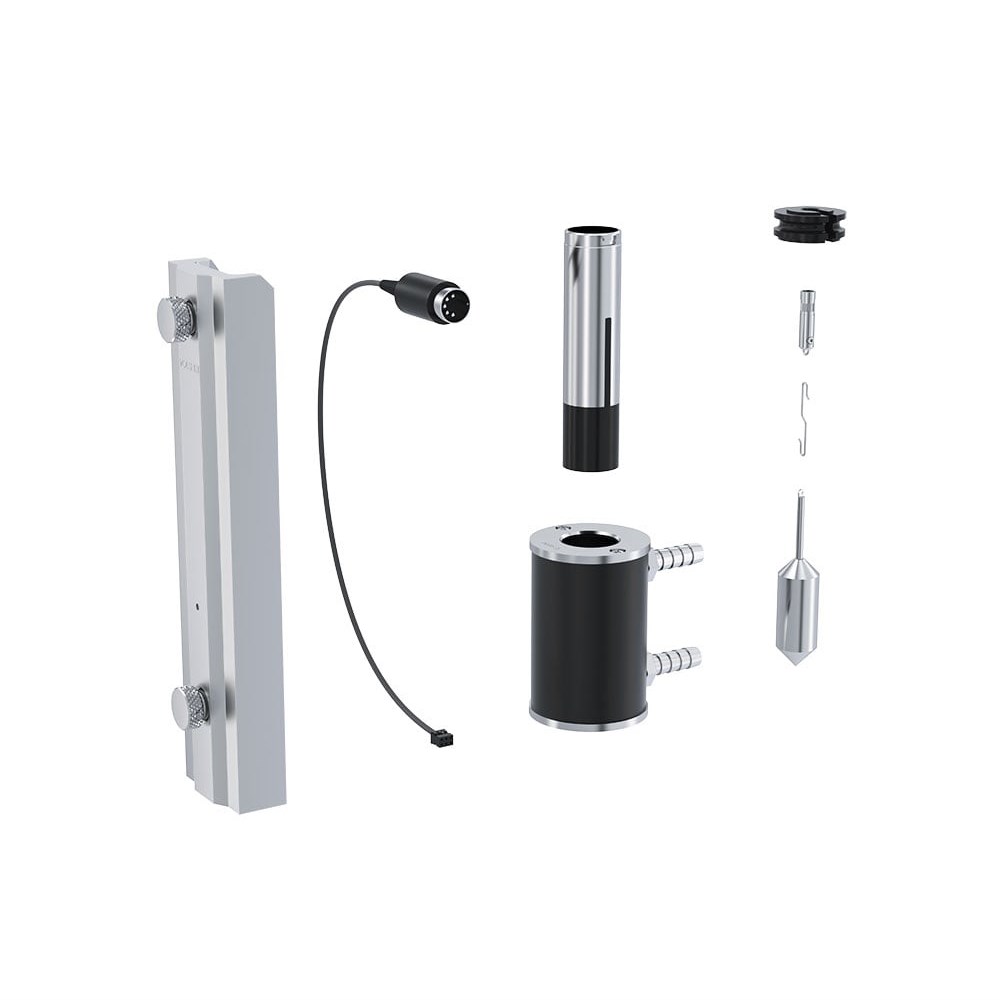

Adapter, VOLS-1

Adapter to measure the viscosity of especially valuable and expensive samples. A double jacket with temperature sensor to quickly heat up or cool down the sample as well as a coaxial cylinder system for the analysis of the sample at a specific shear rate is included.

Further spindles and chambers for different volumes can be purchased separately.

Technical Specifications
Supplier IKA
Spindle geometry Cylinder
Connection Thread M2.5 LH
Hook connector yes
Sample volume 6.7 ml
Flow Jacket yes
Mounting Bracket yes
Sample container: Specified chamber
Working temperature max. 100 °C
Viscosity Accuracy (FSR) 2 %
Viscosity Repeatibility (FSR) 0.2 %
Min. FSR match ROTAVISC lo-vi 1.5 mPa.s
Max. FSR match ROTAVISC lo-vi 30000 mPa.s
Min. FSR match ROTAVISC me-vi 16 mPa.s
Max. FSR match ROTAVISC me-vi 320000 mPa.s
Min. FSR match ROTAVISC hi-vi I 32 mPa.s
Max. FSR match ROTAVISC hi-vi I 640000 mPa.s
Min. FSR match ROTAVISC hi-vi II 128 mPa.s
Max. FSR match ROTAVISC hi-vi II 2600000 mPa.s
Material in contact with medium stainless steel 1.4404
Dimensions (W x H x D) 300 x 110 x 275 mm
Weight 1.656 kg
