Reactor vessel, 500 ml, SY 500 D

Product Code: IKA0020113460

Increase value Decrease value
  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

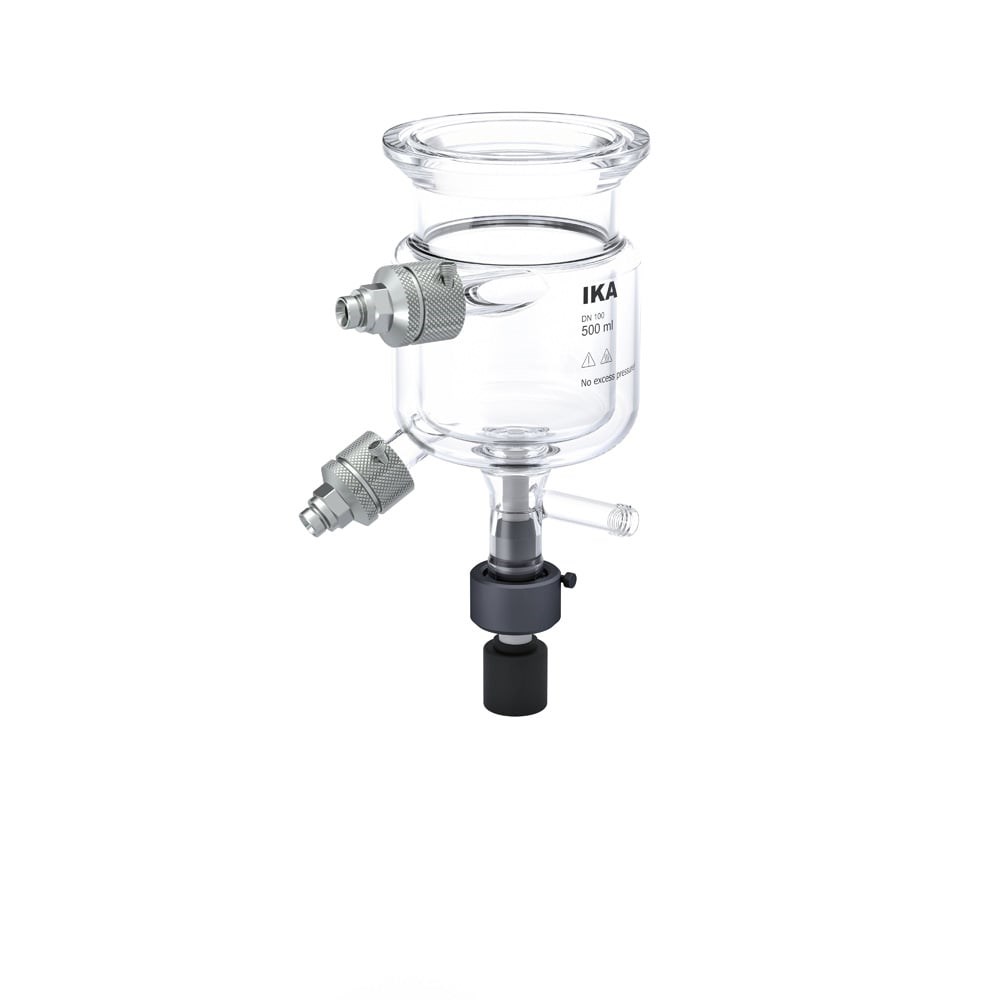

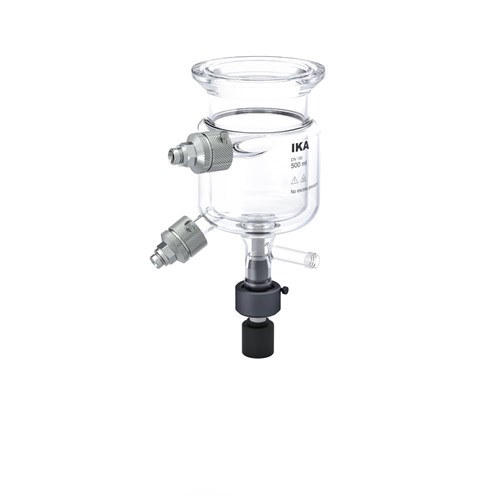

Reactor vessel, 500 ml, SY 500 D

Double-walled reactor vessel with bottom discharge including accessories for the EasySyn reactor system.
Volume: 500 ml
Flange size: DN 100
Including stainless steel metal adapter M 16x1 (Male) to connect temperature hoses.

Package includes:
  • Glasreactor incl. metal adapter
Technical Specifications
Supplier IKA
Volume 0.5 l
Fill level diameter ratio 1.375
Fill level at nominal volume 72 mm
Vessel inner diameter 99 mm
Vessel outer diameter 130 mm
Height (room dimension) 313 mm
Width (room dimension) 203 mm
Depth (room dimension) 141 mm
Flange type acc. DIN 12214 with circular groove
Flange dimension DN100
Flange collar diameter 108 mm
Bottom shape Torispherical head
Bottom drain yes
Bottom valve Safety valve
Bottom drain outlet inner diameter 10 mm
Bottom drain outlet outer diameter 15 mm
Bottom drain outlet length 65 mm
Bottom drain shape straight
Tempering jacket filling capacity 0.40 L
Tempering jacket inlet connection DN 15 (tech-flange)
Tempering jacket inlet inner diameter 15 mm
Vacuum application yes
Tempering jacket outlet connection DN 15 (tech-flange)
Tempering jacket oulet inner diameter 15 mm
Thread closure system M16x1
Width across flats WAF 22
Material closure system stainless steel 1.4404
Reactor vessel material borosilicate glass 3.3 DIN ISO 3585
Working temperature -50 - 200 °C
Useable volume 30 - 610 ml
Useable volume with temperature probe min. 260 ml
Pressure max. atmospheric pressure
Attainable vacuum 3 mbar
Material in contact with medium borosilicate glass 3.3 DIN ISO 3585, PTFE
