Reactor vessel, 250 ml, SY 250

Product Code: IKA0020126923

Increase value Decrease value
  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

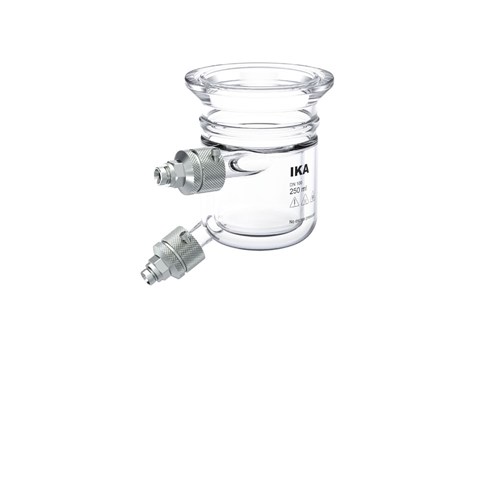

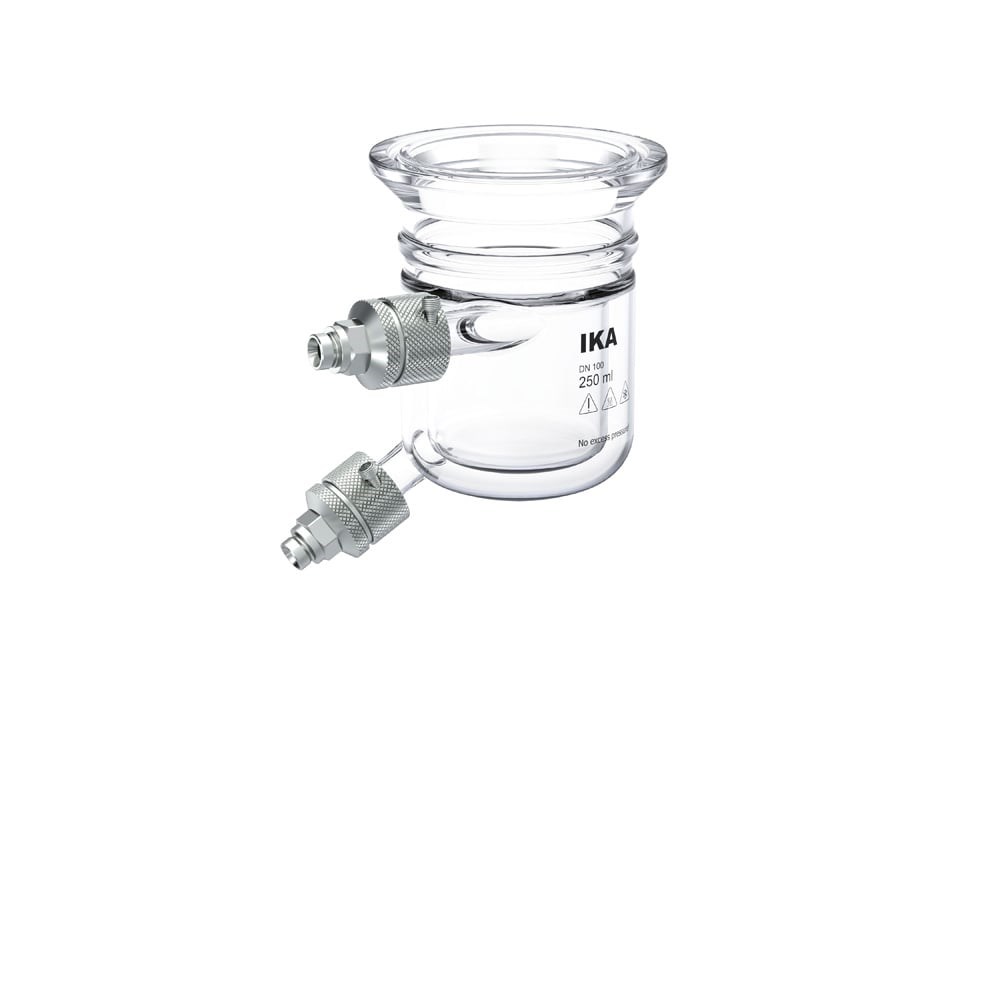

Reactor vessel, 250 ml, SY 250

Double-walled reactor vessel including accessories for the EasySyn reactor system.
Volume: 250 ml
Flange size: DN 100
Including stainless steel metal adapter M 16x1 (Male) to connect temperature hoses.

Package include:
  • Glasreactor incl. Metal adapter
Technical Specifications
Supplier IKA
Volume 0.25 l
Fill level diameter ratio 1.36
Fill level at nominal volume 57.5 mm
Vessel inner diameter 78 mm
Vessel outer diameter 110 mm
Height (room dimension) 196 mm
Width (room dimension) 197 mm
Depth (room dimension) 138 mm
Flange type acc. DIN 12214 with circular groove
Flange dimension DN100
Flange collar diameter 108 mm
Bottom shape Torispherical head
Tempering jacket filling capacity 0.29 L
Tempering jacket inlet connection DN 15 (tech-flange)
Tempering jacket inlet inner diameter 15 mm
Vacuum application yes
Tempering jacket outlet connection DN 15 (tech-flange)
Tempering jacket oulet inner diameter 15 mm
Reactor vessel material borosilicate glass 3.3 DIN ISO 3585
Working temperature -50 - 230 °C
Useable volume 40 - 300 ml
Useable volume with temperature probe min. 130 ml
Pressure max. atmospheric pressure
Attainable vacuum 3 mbar
