Reactor vessel, 100 ml, SY 100

Product Code: IKA0020126922

Increase value Decrease value
  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

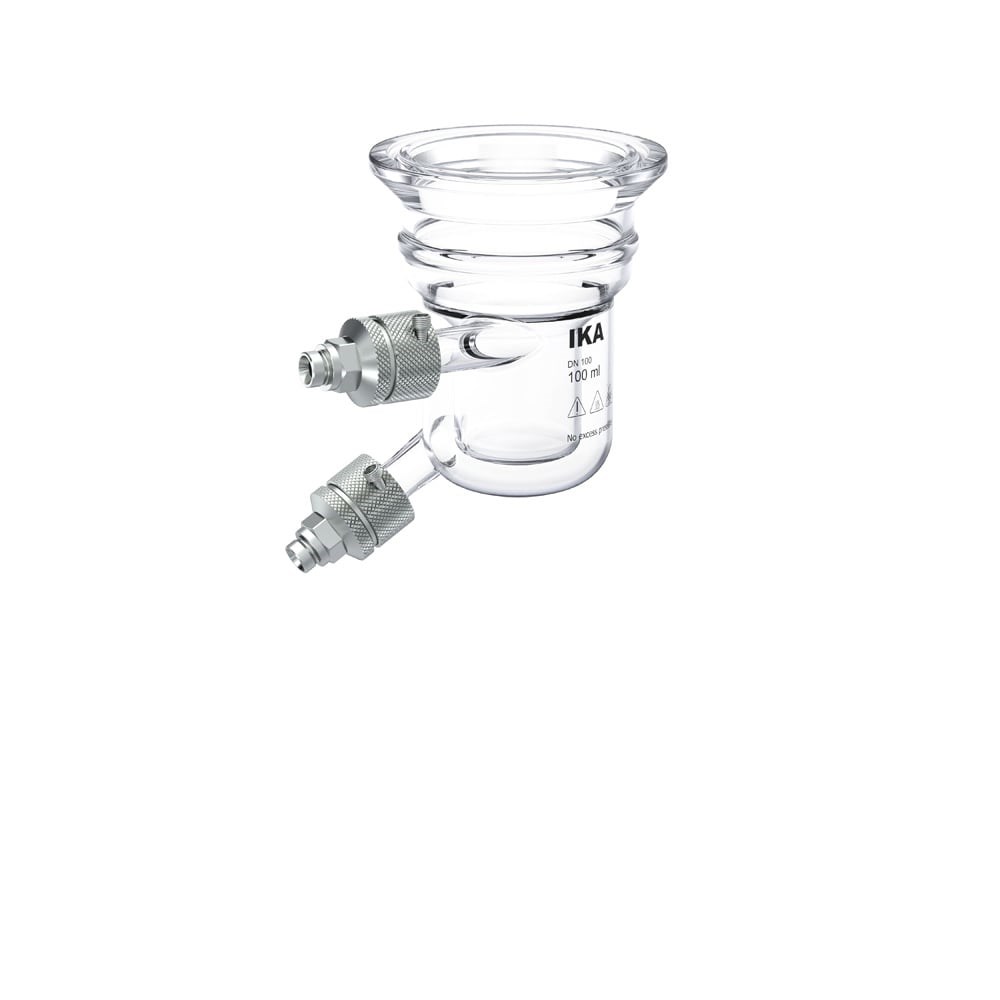

Reactor vessel, 100 ml, SY 100

Double-walled reactor vessel including accessories for the EasySyn reactor system.
Volume: 100 ml
Flange size: DN 100
Including stainless steel metal adapter M 16x1 (Male) to connect temperature hoses.

Package includes:
  • Glasreactor incl. Metal adapter
Technical Specifications
Supplier IKA
Volume 0.1 l
Fill level diameter ratio 1.12
Fill level at nominal volume 48 mm
Vessel inner diameter 53.6 mm
Vessel outer diameter 90 mm
Height (room dimension) 196 mm
Width (room dimension) 197 mm
Depth (room dimension) 138 mm
Flange type acc. DIN 12214 with circular groove
Flange dimension DN100
Flange collar diameter 108 mm
Bottom shape Torispherical head
Tempering jacket filling capacity 0.246 L
Tempering jacket inlet connection DN 15 (tech-flange)
Tempering jacket inlet inner diameter 15 mm
Vacuum application yes
Tempering jacket outlet connection DN 15 (tech-flange)
Tempering jacket oulet inner diameter 15 mm
Reactor vessel material borosilicate glass 3.3 DIN ISO 3585
Working temperature -50 - 230 °C
Useable volume 20 - 120 ml
Useable volume with temperature probe min. 60 ml
Pressure max. atmospheric pressure
Attainable vacuum 3 mbar
