Useable volume max.	5000 ml
Working temperature	-50 - 230 °C
Pressure max.	atmospheric pressure
Attainable vacuum	25 mbar
Material in contact with medium	AISI 316L
Fill level at nominal volume	175 mm
Vessel inner diameter	200 mm
Vessel outer diameter	254 mm
Height (room dimension)	289 mm
Width (room dimension)	259 mm
Depth (room dimension)	254 mm
Flange dimension	DN200
Flange collar diameter	204 mm
Bottom shape	Torispherical head
Bottom drain	yes
Bottom valve	Standard valve
Bottom drain outlet inner diameter	20 mm
Bottom drain outlet outer diameter	25 mm
Bottom drain shape	Straight with olive

File Upload:

Please enter the validation code

Vessels

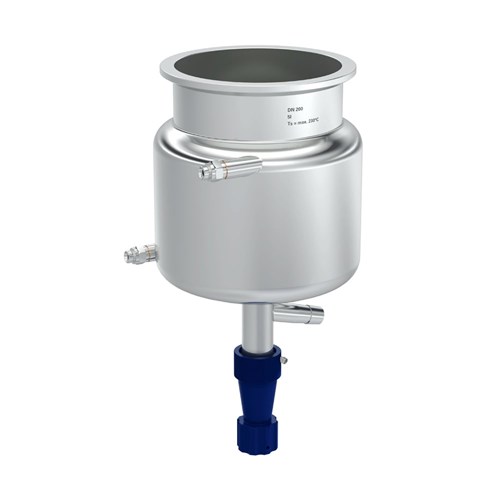

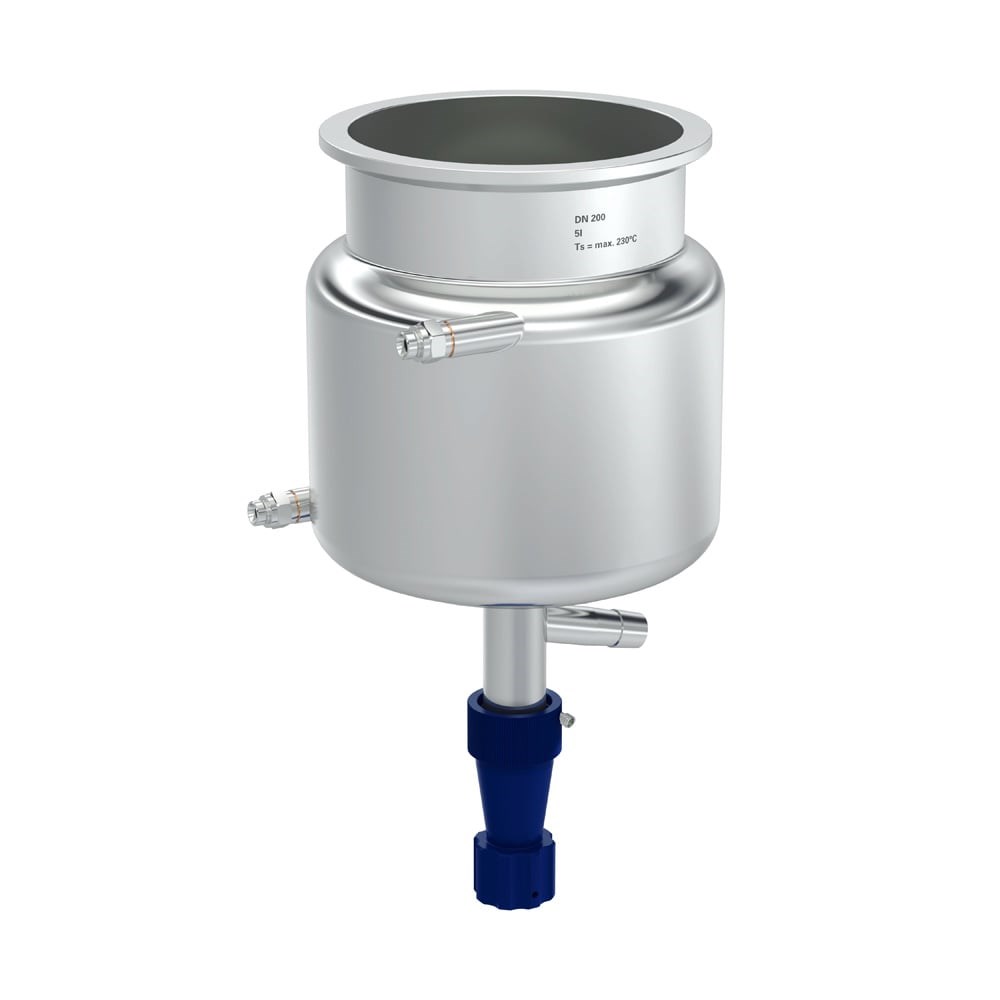

Reactor vessel, 5.0 l, LR 5000.4
