Reactor vessel, 5.0 l, LR 5000.1

Product Code: IKA0020125443

Increase value Decrease value
  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

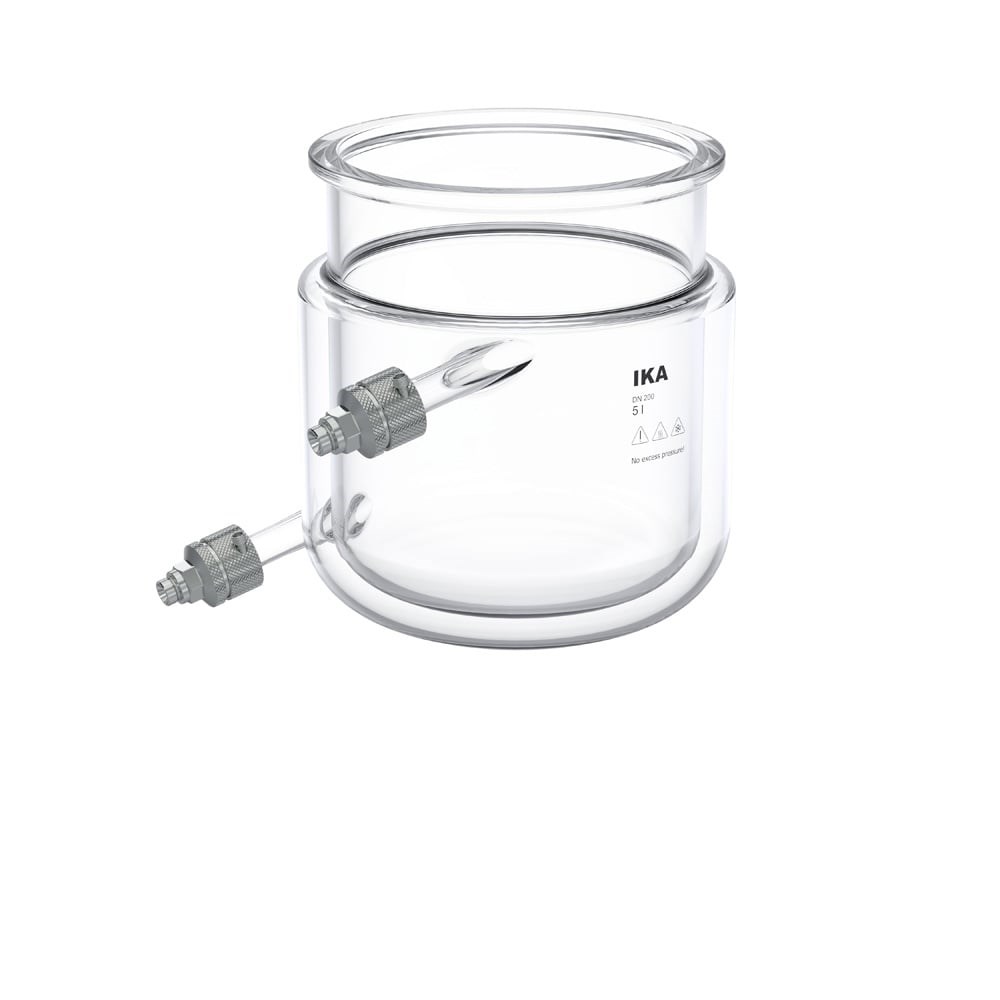

Reactor vessel, 5.0 l, LR 5000.1

Double-walled glas reactor vessel for use with the LR-5.ST laboratory reactor.

Volume: 5.0 l
Material in contact with medium: Borosilicatglass 3.3
Including stainless steel metal adapter M 16x1 (Male) for connection of temperature hoses or quick connection adapters.

Technical Specifications
Supplier IKA
Useable volume max. 5000 ml
Working temperature -50 - 230 °C
Pressure max. atmospheric pressure
Attainable vacuum 25 mbar
Fill level at nominal volume 172 mm
Vessel inner diameter 201 mm
Vessel outer diameter 250 mm
Height (room dimension) 287 mm
Width (room dimension) 308 mm
Depth (room dimension) 250 mm
Flange dimension DN200
Flange collar diameter 215 mm
Bottom shape Torispherical head
Tempering jacket filling capacity 2 L
Tempering jacket inlet connection DN 15 (tech-flange)
Tempering jacket inlet inner diameter 15 mm
Vacuum application yes
Tempering jacket outlet connection DN 15 (tech-flange)
Tempering jacket oulet inner diameter 15 mm
Reactor vessel material borosilicate glass 3.3 DIN ISO 3585
