Reactor vessel, 2.0 l, LR 2000.4

Product Code: IKA0003064900

Increase value Decrease value
  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

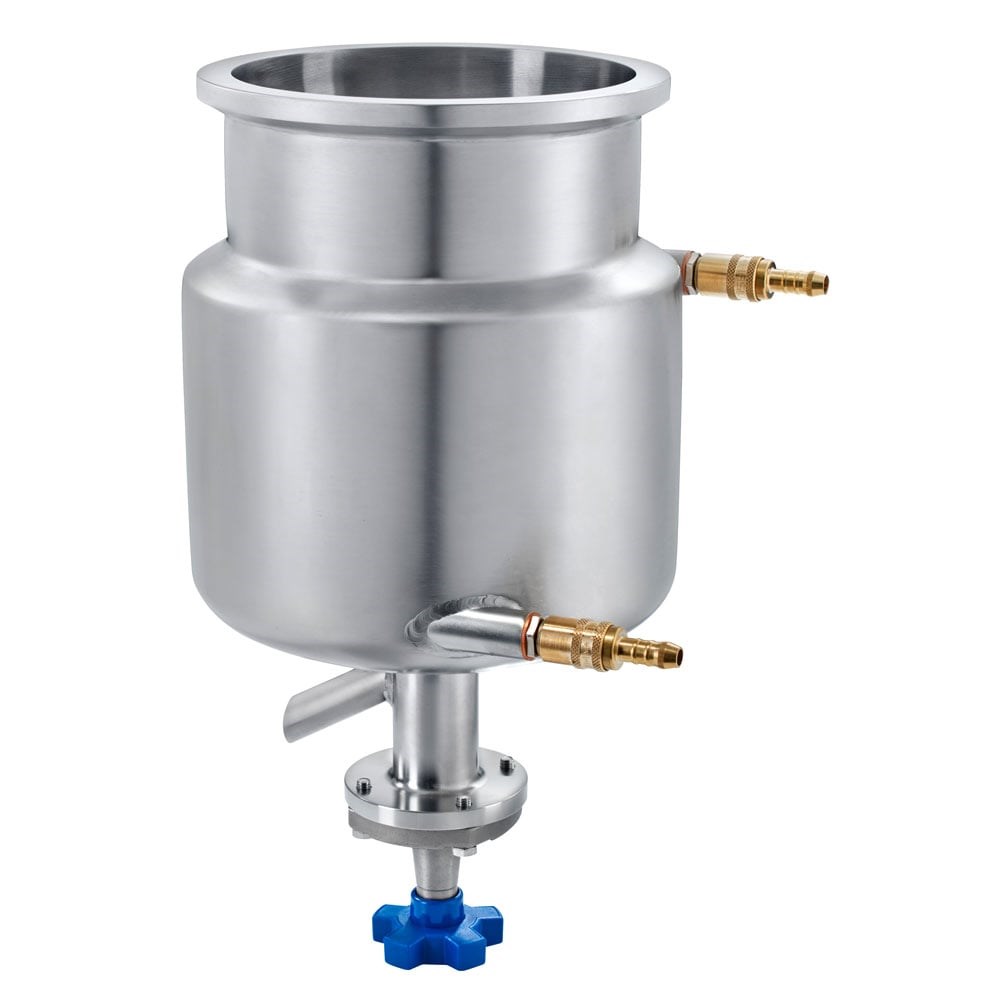

Reactor vessel, 2.0 l, LR 2000.4

Double-walled reactor vessel with bottom discharge including accessories for the laboratory reactors LR-2.ST.
Volume: 2.0 l
Material in contact with medium: stainless steel 1.4571, PTFE.
Including quick connection adapters with DN 8 Olive for connection of temperature hoses.

Package includes:
  • Stainless steel reactor incl. quick connection adapters with DN 8 olive.
Technical Specifications
Supplier IKA
Material in contact with medium AISI 316L, AISI 316Ti, PTFE
Volume 2 l
Vessel inner diameter 153 mm
Vessel outer diameter 194 mm
Height (room dimension) 362 mm
Width (room dimension) 180 mm
Depth (room dimension) 230 mm
Flange dimension DN150
Bottom shape Torispherical head
Bottom drain yes
Bottom valve Standard valve
Bottom drain outlet inner diameter 12 mm
Bottom drain outlet outer diameter 18 mm
Bottom drain outlet length 73 mm
Bottom drain shape straight
Heating blanket yes
Tempering jacket inlet inner diameter 6 mm
Vacuum application yes
Tempering jacket oulet inner diameter 6 mm
Weight 4.955 kg
