Reactor vessel, 2.0 l, LR 2000.2

Product Code: IKA0002509600

Increase value Decrease value
  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

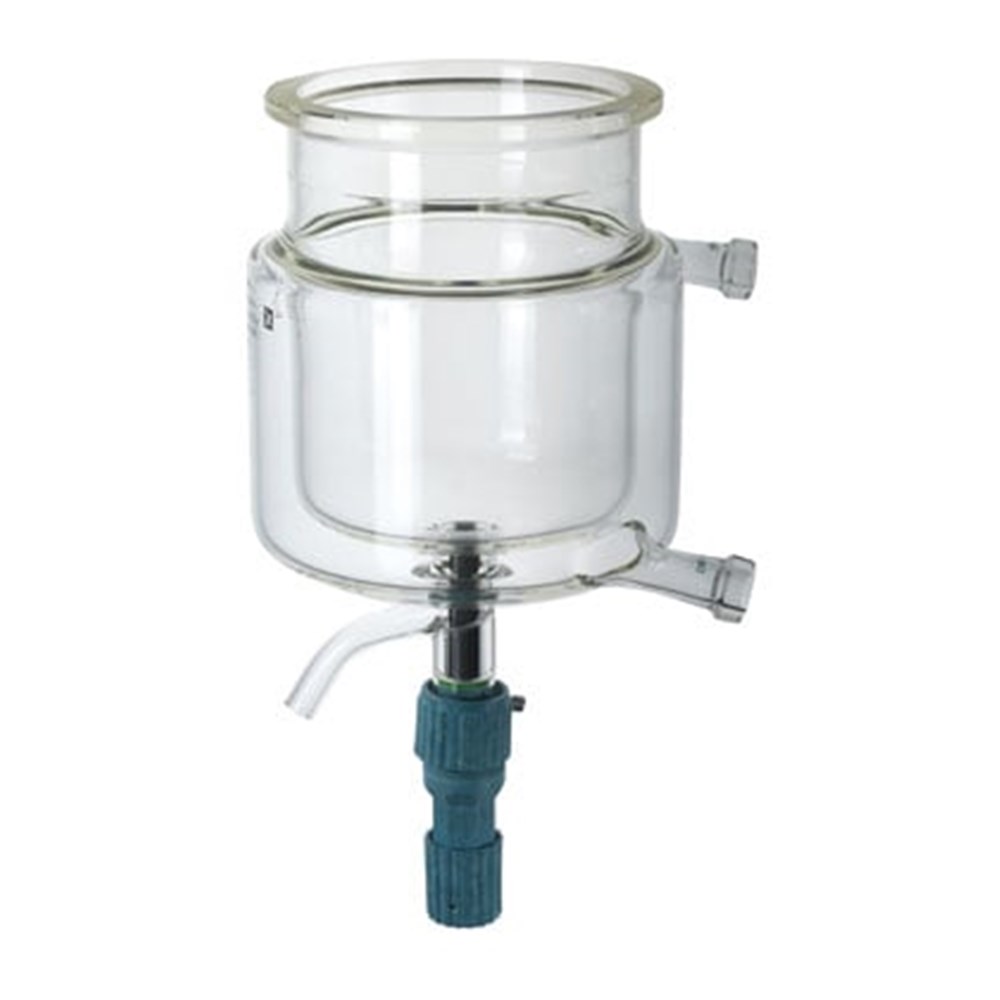

Reactor vessel, 2.0 l, LR 2000.2

Double-walled reactor vessel with bottom discharge including accessories for the laboratory reactors LR-2.ST.
Volume: 2.0 l
Material in contact with medium: Borosilicatglass 3.3, PTFE.
Including stainless steel metal adapter M 16x1 (Male) for connection of temperature hoses or quick connection adapters.

Package includes:
  • Glass reactor incl. metal adapters
Technical Specifications
Supplier IKA
Material in contact with medium borosilicate glass 3.3 DIN ISO 3585, PTFE
Volume 2 l
Vessel inner diameter 150 mm
Vessel outer diameter 200 mm
Height (room dimension) 400 mm
Width (room dimension) 200 mm
Depth (room dimension) 180 mm
Flange dimension DN150
Bottom shape Torispherical head
Bottom drain yes
Bottom valve Standard valve
Bottom drain outlet inner diameter 11 mm
Bottom drain outlet outer diameter 15 mm
Heating blanket yes
Tempering jacket inlet connection DN 15 (tech-flange)
Tempering jacket inlet inner diameter 15 mm
Vacuum application yes
Tempering jacket outlet connection DN 15 (tech-flange)
Tempering jacket oulet inner diameter 15 mm
Reactor vessel material borosilicate glass 3.3 DIN ISO 3585
Weight 3.6479 kg
