Magnetic Heater Stirrers

Magnetic stirrer with heating, ceramic plate, C-MAG HS 7 control

Product Code: IKA0020009074

Increase value Decrease value
  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

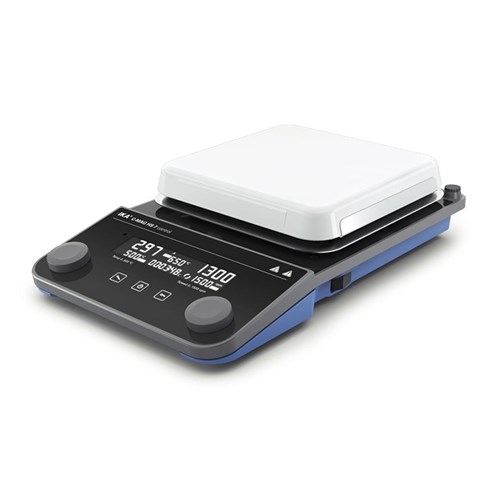

Magnetic stirrer with heating, ceramic plate, C-MAG HS 7 control

The IKA C-Mag HS 7 control has a square top made of ceramic. It stirs volumes of up to 20l (H2o) and runs at speeds ranging from 50-1500rpm. IKA’s stands strongly by its product and technology and is offering a lifetime warranty for this product – scientists can focus on their experiments using a reliable hotplate stirrer. IKA not only focuses on hardened glass because of visibility, chemical resistance and safety, it also optically changes the game of a magnetic stirrer with a glass surface. The C-Mag HS 7 control improves over time with regular firmware updates – control of kinetics and sensitive reactions are supported by the integrated timer and counter function – the IKA SmartTemp® function protects user intelligently. Automatic switch-off of the heating function if the connected external temperature sensor is not immersed in the medium. Function selectable, timeout time adjustable (Error 5). PT1000 temperature sensor included.

Package includes:

  • C-MAG HS 7 control
  • PT 1000.60 Temperature sensor, stainless steel
  • IKAFLON® 30 Magnetic stirring bar
  • IKAFLON® 40 Magnetic stirring bar
  • Screw driver
  • USB A-B Cable
Technical Specifications
Supplier IKA
Number of stirring positions 1
Stirring quantity max. per stirring position (H2O) 20 l
Maximum load 25 kg
Motor rating output 9 W
Direction of rotation right / left
Speed display set-value LCD
Speed display actual-value LCD
Speed adjustment Turning knob
Speed range 50 - 1500 rpm
Setting accuracy speed 10 rpm
Stirring bar length 30 - 80 mm
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) +2 K
Heat output 1000 W
Temperature display set-value LCD
Temperature display actual-value LCD
Temperature unit °C
Heating temperature range room temp. - 500 °C
Heat control Turning knob
Display resolution 1 K
Temperature setting range 0 - 500 °C
Temperature setting resolution of heating plate 5 K
Connection for ext. temperature sensor PT1000, ETS-D5, ETS-D6
Temperature setting resolution of medium 1 K
Adjustable safety circuit 100 - 650 °C
Set-up plate material ceramic
Set-up plate dimensions 180 x 180 mm
Automatic reverse rotation yes
Intermittent mode yes
Viscosity trend measurement yes
Timer yes
Timer display LCD
Time setting min. 1 s
Time setting max. 143940 min
Sensor in medium detection yes
Temperature measure range PT1000 -10 - 350 °C
Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C) ±2 %
Heating rate (1l H2O in H1500) 5 K/min
Heat control accuracy of heating plate (at 100°C) ±5 K
Heat control accuracy with ext. PT1000 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) ±0.5 K
Heat control accuracy with ETS-D5 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) ±0.5 K
Heat control accuracy with ETS-D6 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) ±0.2 K
Dimensions (W x H x D) 220 x 88 x 354 mm
Weight 4 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 21
RS 232 interface yes
USB interface USB-B
Voltage 220 - 230 V
Frequency 50/60 Hz
Power input 1020 W
Power input standby 2 W
